Inteliair® Mobile Filter Units

The Inteliair® IMU 1.1S and 2.2S are designed to deliver quality and performance whilst ensuring maximum value and are primarily designed for the extraction from welding and grinding applications.

Product No Longer Available

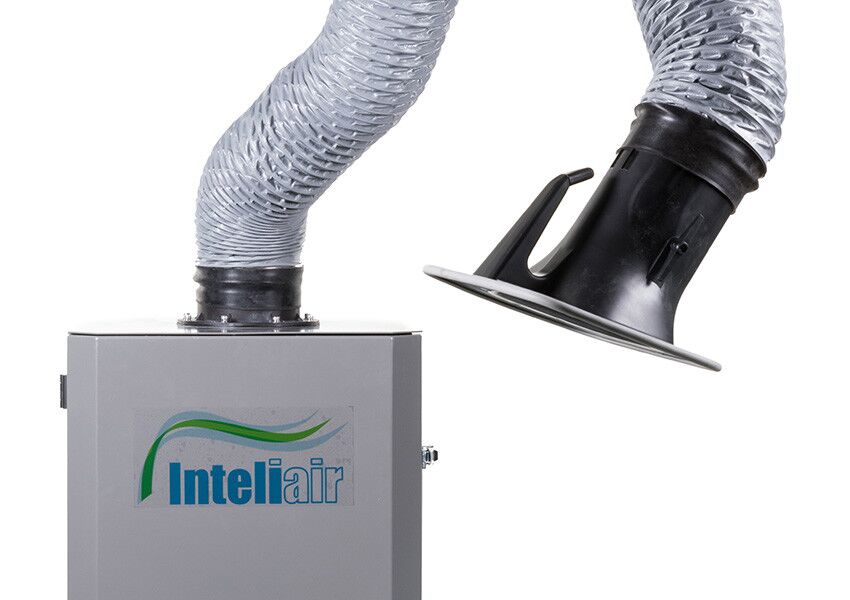

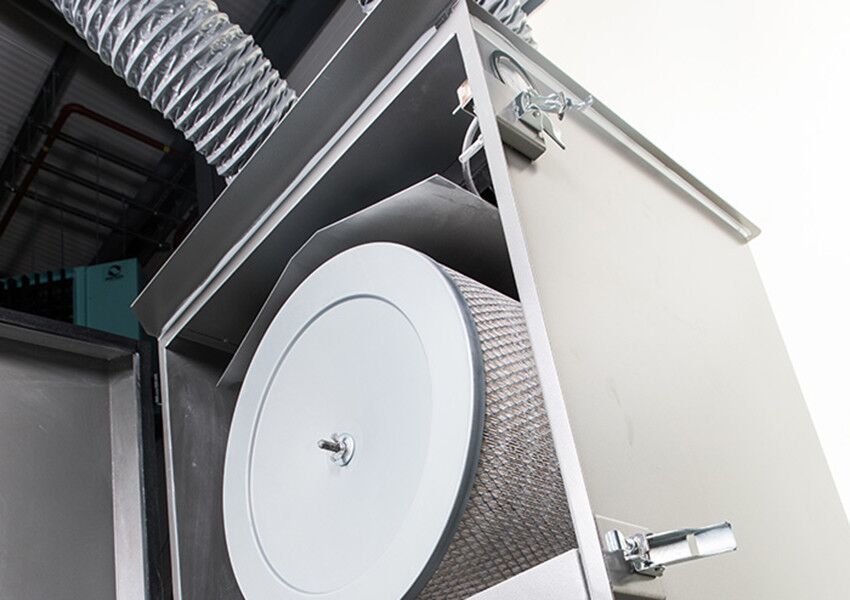

The Inteliair® IMU 1.1S is supplied complete with an i2M self-supporting extraction arm and is supplied with a self-cleaning cartridge filter element. The filter element is cleaned with a pulse of compressed air.

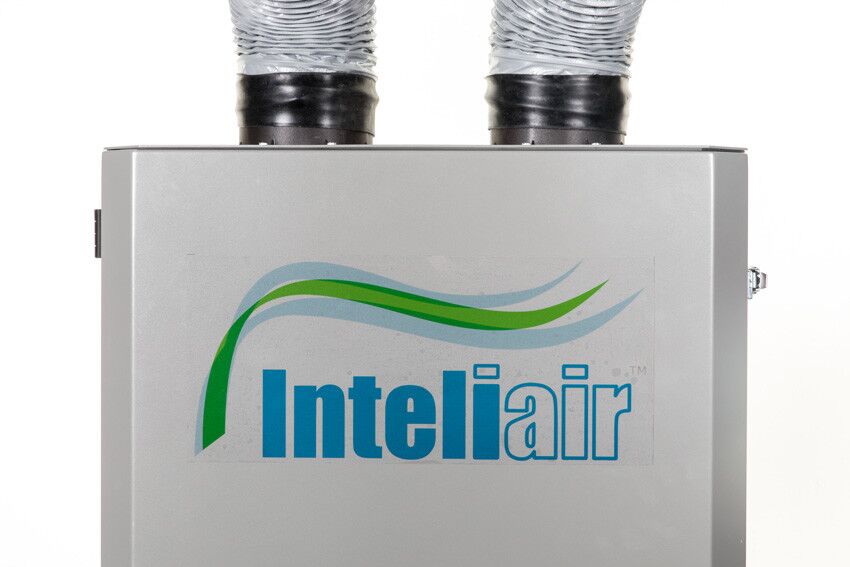

The Inteliair® IMU 2.2S is supplied complete with two i3M self-supporting extraction arms and is supplied with self-cleaning cartridge filter elements. The filter elements are cleaned with a pulse of compressed air.


iMU 1.1s, iMU 2.2s

Key Features

Inteliair IMW 1.1s Inteliair IMW 2.2s
Fan Type Centrifugal Centrifugal
Air Flow 1000m³/hr. 2000m³/hr.
Motor Power 1.1kW 2.2KW
Power Supply 240V ~/50Hz 415v 3ph 50Hz
Filtration Area 20m2 40m2
Number of Filter Catridges One One
Compressed Air Requirement 5-6 bar 5-6 bar
Fan Pressure 1900pa 1900pa
Filter Media Cellulose Cellulose
Filtration Efficiiency >99.9% >99.9% @ 5μm
Noise ≤74±5dB(A) ≤74±5dB(A)
Collection Tray Volume 2-litres 2-litres
Weight 95±5KG 98±5KG
Dimensions 650×650×1200mm 638 × 684 × 1300mm
Energy Reduction Calculator

Energy Cost Reduction Calculator

Expected energy savings per fan is 40% therefore

trees* planted annually

*A medium growth coniferous tree, planted in an urban setting and allowed to grow for 10 years.
